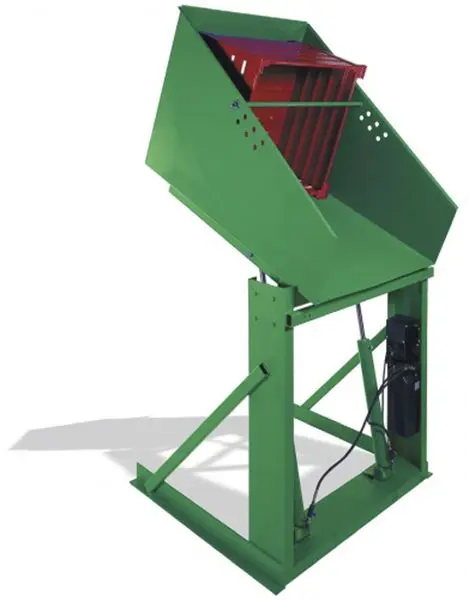

72 in. Dump Height Box Dumper - 6000-lb Capacity - 48 in. x 51 in. Chute

(F80170A0)
Click image to enlarge
Price Each: Call for Price
Quantity:

Valley Craft's Box Dumpers bolt directly to the floor ensuring reliability and stability throughout operation. Heavy duty all-welded steel dumpers are designed to manage the heaviest of loads. Dumpers are fully powered up and gravity down and contents dump completely within one minute. Chutes have a 1/4 in. plate steel base with 7-ga. sides. Handy rotary-switch control activates chute lifting dumper to 72 in. dump height. Dumpers have an adjustable hold down bar that can be placed at 30-42 in. (on 2 in. centers).
72 in. Dump Height Box Dumper - 6000-lb Capacity - 48 in. x 51 in. Chute Specifications
  • Chute Reach: 5 in.
  • Horizontal Clearance: 91 in.
  • Overhead Clearance: 158 in.
  • Elevated Chute: Yes
  • Load Capacity (lbs.): 6000
