PalletPal Roll-On Level Loader with Turntable

(ROLLC4-28)
Click image to enlarge
Request for QuoteContact Us
Price Each: $9,180.00
Quantity:

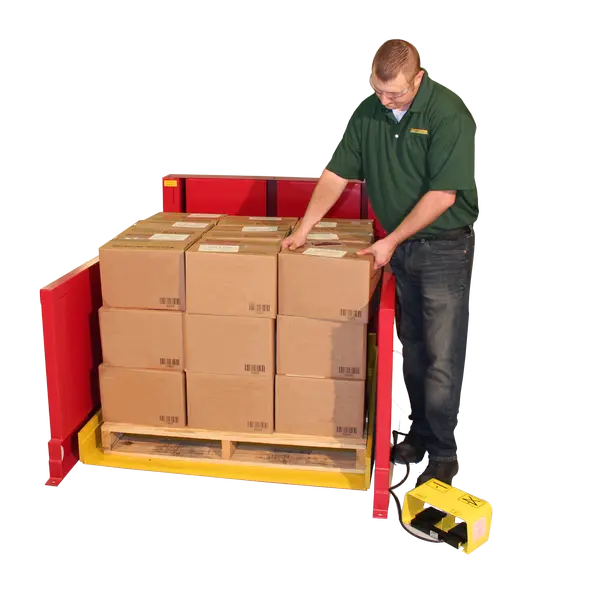

The PalletPal Roll-On Level Loader lower to floor height so pallets can be rolled on and off with a hand pallet truck. The lift is adjusted by pushbutton or foot switch control to maintain an ideal height for manual loading and unloading.
Features
  •  Non-Standard Platform Sizes Available:40", 42", 48", 52"
  • Platform locks in partially up position to allow relocation by means of a hand pallet truck
  • Photo-eye provides toe protection
Specifications
  • Load Capacity (lbs): 4000
  • Raised Height: 28"
  • Lowered Height: 3/8"
  • Platform Size: 44" x 48"
  • Rise Time: 30 sec
  • Motor HP: 1
  • Voltage Phase/Hz: 115/1/60
