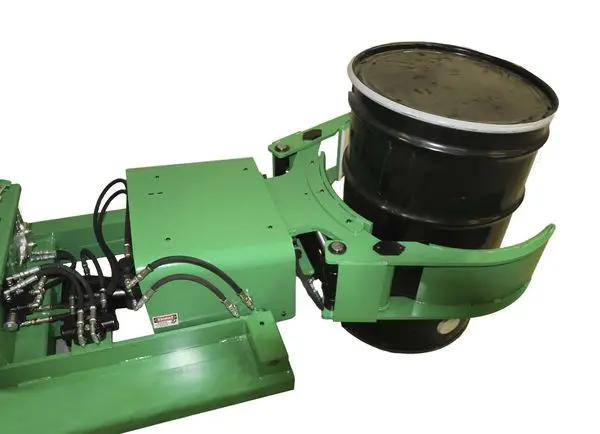

HYDRA GRIP Lift Truck-Powered Hydraulic Attachment

(F89702)
Click image to enlarge
Request for QuoteContact Us
Price Each: $6,110.00
Quantity:


Function: Clamp and Rotate. This hydraulic fork lift attachment provides two fully hydraulic functions that are activated by an ergonomic hand-held pendant. A single set of fully hydraulic jaws automatically adjust to most drums 18 in. -28 in. in diameter. Rotating function offers a full 360-degree rotation for inverting and pouring to both the right and left. Unit requires lift truck to be equipped with auxiliary valve control and hydraulic quick couplers for operation. The clamp/unclamp feature is accomplished via a rope pull activation of the selector valve. Distance between fork tubes: 2-1/2 in. x 6-1/2 in. x 37-1/2 in. . Jaw size: 9 in. x 15 in. . Distance between forks: 19-3/8 in. . 2,000-lb load capacity.
Specifications
  • Load Capacity (lbs.): 2000
