Tandem Lift Tables – LST Series

Click image to enlarge
Request for QuoteContact Us

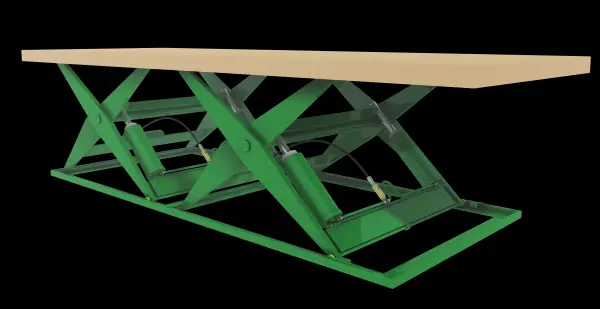

Tandem Lift Tables are typically used as feeding tables for tube welders, formers and panel saws.  The Tandem design allows these lift tables a combination of high capacity and low collapsed height and will support loads up to 7' x 17'.
  • 4,000 lb. to 12,000 lb. Capacities
  • Up to Platform lengths of 172"
  • Made in U.S.A.
  • 2-Year Warranty both Parts & Labor
Not finding your size or application? Contact us or call Stewart Handling today for custom sizing or applications:  800-447-5300
Pages:  1
Showing 1 to 20 of 20 results

Product Name:
Tandem Lift Table
Product Number:
LST10-60
Load Capacity (lbs.):
10000
Maximum Platform:
48” x 204”
Lowered Height:
8”
Raised Height:
68”
Standard Platform & Base:
24” x 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST10-60W
Load Capacity (lbs.):
10000
Maximum Platform:
84” X 204”
Lowered Height:
8”
Raised Height:
68”
Standard Platform & Base:
54” X 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST12-36
Load Capacity (lbs.):
12000
Maximum Platform:
48” x 120”
Lowered Height:
7-1/4”
Raised Height:
43-1/4”
Standard Platform & Base:
24” x 96”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST12-36W
Load Capacity (lbs.):
12000
Maximum Platform:
60” x 120”
Lowered Height:
7-1/4”
Raised Height:
43-1/4”
Standard Platform & Base:
36” X 96”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST12-48
Load Capacity (lbs.):
12000
Maximum Platform:
48” x 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
24” x 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST12-48W
Load Capacity (lbs.):
12000
Maximum Platform:
72” X 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
48” X 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST12-60
Load Capacity (lbs.):
12000
Maximum Platform:
48” x 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
24” x 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST12-60W
Load Capacity (lbs.):
12000
Maximum Platform:
84” X 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
54” X 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST4-36
Load Capacity (lbs.):
4000
Maximum Platform:
48” x 120”
Lowered Height:
6-3/4”
Raised Height:
42-3/4”
Standard Platform & Base:
24” x 96”
Standard Motor HP:
1
Standard Voltage:
115/1/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST4-36W
Load Capacity (lbs.):
4000
Maximum Platform:
60” x 120”
Lowered Height:
6-3/4”
Raised Height:
42-3/4”
Standard Platform & Base:
36” X 96”
Standard Motor HP:
1
Standard Voltage:
115/1/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST4-48
Load Capacity (lbs.):
4000
Maximum Platform:
48” x 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
24” x 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST4-48W
Load Capacity (lbs.):
4000
Maximum Platform:
72” X 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
48” X 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST4-60
Load Capacity (lbs.):
4000
Maximum Platform:
48” x 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
24” x 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST4-60W
Load Capacity (lbs.):
4000
Maximum Platform:
84” X 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
54” X 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST8-36
Load Capacity (lbs.):
8000
Maximum Platform:
48” x 120”
Lowered Height:
6-3/4”
Raised Height:
42-3/4”
Standard Platform & Base:
24” x 96”
Standard Motor HP:
1
Standard Voltage:
115/1/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST8-36W
Load Capacity (lbs.):
8000
Maximum Platform:
60” x 120”
Lowered Height:
6-3/4”
Raised Height:
42-3/4”
Standard Platform & Base:
36” X 96”
Standard Motor HP:
1
Standard Voltage:
115/1/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST8-48
Load Capacity (lbs.):
8000
Maximum Platform:
48” x 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
24” x 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST8-48W
Load Capacity (lbs.):
8000
Maximum Platform:
72” X 168”
Lowered Height:
8”
Raised Height:
56”
Standard Platform & Base:
48” X 132”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Tandem Lift Table
Product Number:
LST8-60
Load Capacity (lbs.):
8000
Maximum Platform:
48” x 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
24” x 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
Product Name:
Wide Base Tandem Lift Table
Product Number:
LST8-60W
Load Capacity (lbs.):
8000
Maximum Platform:
84” X 204”
Lowered Height:
10”
Raised Height:
70”
Standard Platform & Base:
54” X 172”
Standard Motor HP:
3.2
Standard Voltage:
460/3/60
View Details
