Standard Duty Loading Dock Lifts

Click image to enlarge
Request for QuoteContact Us

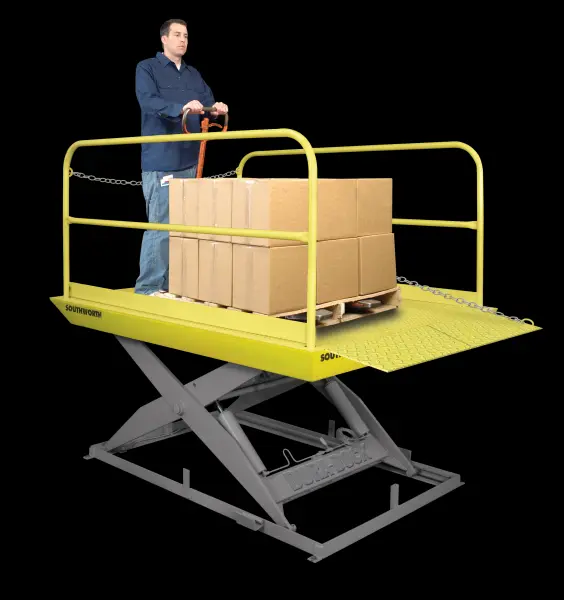

M-Series Standard duty loading dock lift models are available with capacities of 5,000, 6,000 and 8,000 pounds. Platform sizes range from 6' x 8' to 8' x 10'. With vertical travel of 59" these hydraulic loading dock lifts can service any truck bed and/or dock height.
  • Many Dock Transfer Configurations
  • Various Lift Mounting Options
  • For use with non-powered transport devices such as 2 wheel dollies, hand carts, or hand pallet trucks.
  • 2-Year Parts & Labor Warranty
Not finding your size or application? Contact us or call Stewart Handling today for custom sizing or applications: 800-447-5300

Product Number:
Motor HP:
3.2
Lowered Height:
8"
Lift Capacity (lbs):
5000
Voltage/Phase/HZ:
208/230/460-3/60
Raised Height:
67"
* Standard Platform:
72" x 96"
Max. Platform:
96" x 120"
Product Number:
Motor HP:
3.2
Lowered Height:
8"
Lift Capacity (lbs):
6000
Voltage/Phase/HZ:
208/230/460-3/60
Raised Height:
67"
* Standard Platform:
72" x 96"
Max. Platform:
96" x 120"
Product Number:
Motor HP:
3.2
Lowered Height:
10"
Lift Capacity (lbs):
8000
Voltage/Phase/HZ:
208/230/460-3/60
Raised Height:
69"
* Standard Platform:
72" x 96"
Max. Platform:
96" x 120"
